Timing Pulleys

Timing pulleys work together with timing belts to deliver precise, slip-free synchronous transmission through tooth engagement. They are ideal for high-precision, high-speed, low-noise, and stable industrial applications. We supply a full range of HTD, STD, T-type, and AT-type timing pulleys, with complete customization available.

Quantity:
Availability:





Inquire Add to Basket

Coupling Ground Gear Belt Pulley Shaft Disc Locking Device

Product Description

Pulley Types

HTD Timing Pulleys
STD Timing Pulleys
T/AT Timing Pulleys
Curvilinear Timing Pulleys
Aluminum Timing Pulleys
Steel Timing Pulleys

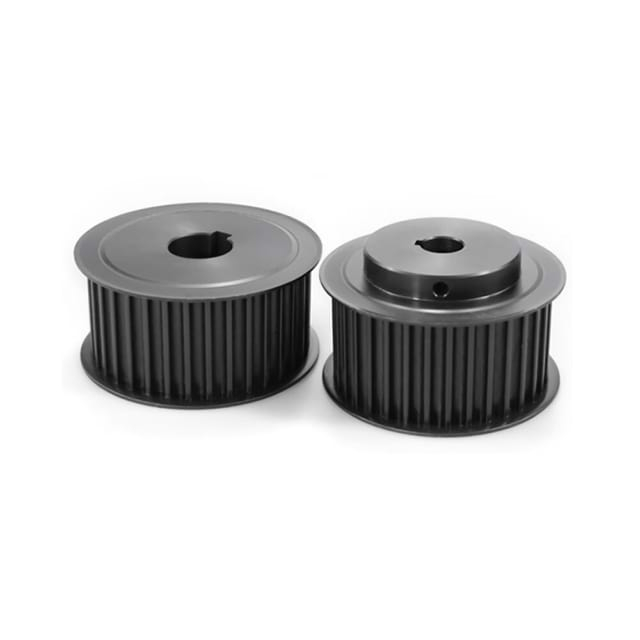

Flanged Timing Pulleys
Custom Timing Pulleys

Key Features

Accurate synchronous transmission with zero slip, suitable for positioning and precise motion control.
Low noise and vibration due to optimized structural design.
High strength and wear resistance for high-speed applications.
Compatible with a wide range of international tooth profiles.
Multiple mounting options available: keyway, locking assembly, taper bore, or set screws.

Material Options

Aluminum Alloy
45# Steel / Carbon Steel
Stainless Steel
Ductile Iron
Engineering Plastics optional
Surface finishing optional: anodizing, blackening, zinc plating, phosphating, sandblasting.

Technical Specifications

Tooth Profiles	HTD (3M / 5M / 8M / 14M), STD, T series (T2.5 / T5 / T10), AT, MXL/XL/L and more
Teeth Count	From 10 to 200 teeth, fully customizable
Outer Diameter	Custom according to drawing
Bore Options	Pilot bore, taper bore, locking assembly, keyway bore
Flanges	Single or double flange available
Machining Precision	Based on ISO/DIN standards
